Hierarchical CloudCompare Object. More...

#include <ccHObject.h>

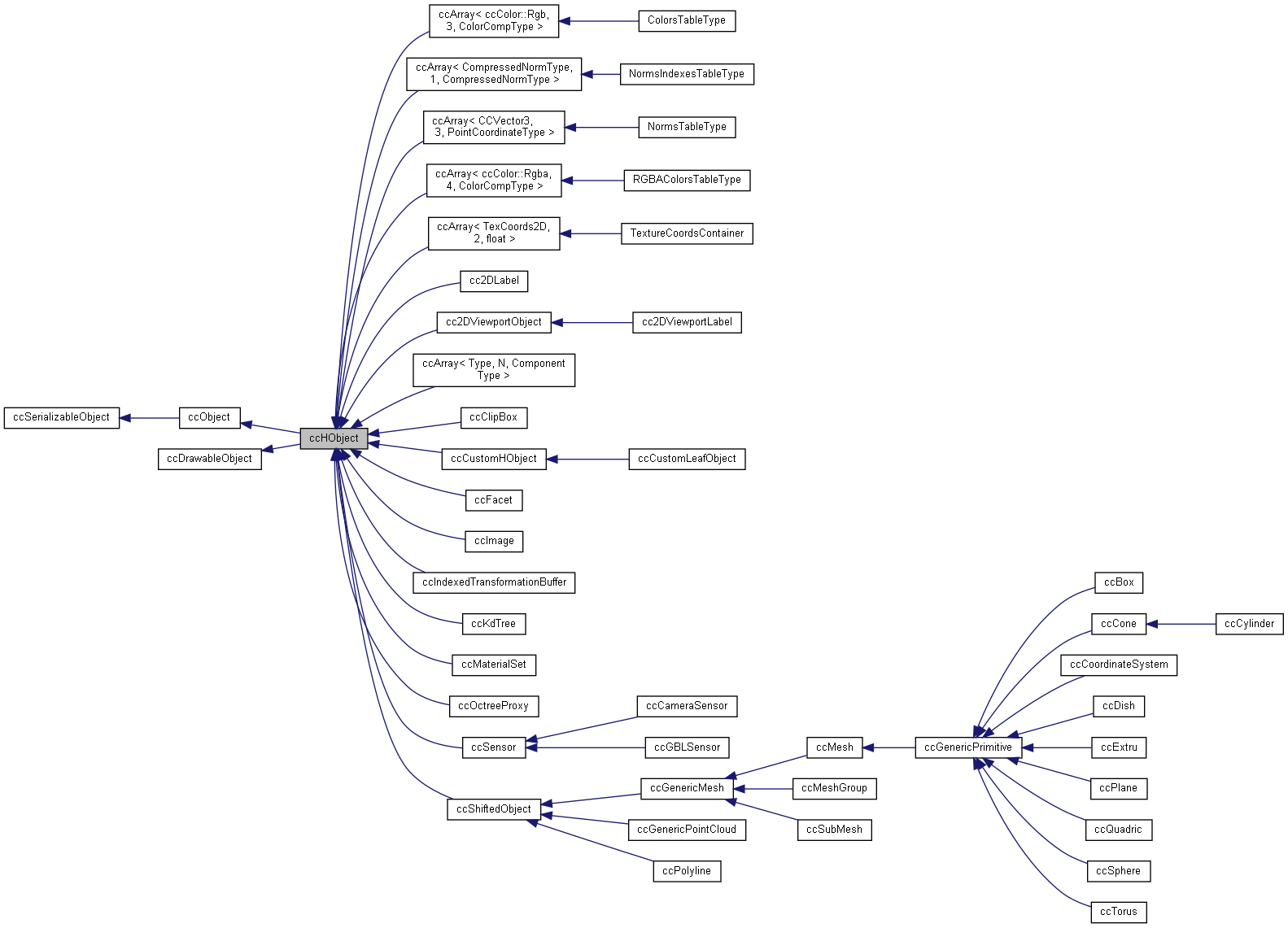

Inheritance diagram for ccHObject:

[legend]

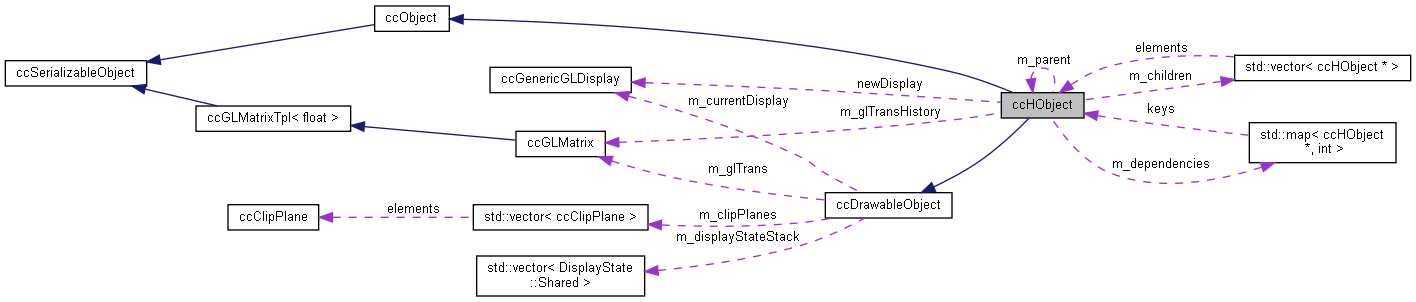

Collaboration diagram for ccHObject:

[legend]

Public Types
enum	DEPENDENCY_FLAGS { DP_NONE = 0 , DP_NOTIFY_OTHER_ON_DELETE = 1 , DP_NOTIFY_OTHER_ON_UPDATE = 2 , DP_DELETE_OTHER = 8 , DP_PARENT_OF_OTHER = 24 }
	Dependency flags. More...

enum	SelectionBehavior { SELECTION_AA_BBOX , SELECTION_FIT_BBOX , SELECTION_IGNORED }
	Behavior when selected.

using	Container = std::vector< ccHObject * >
	Standard instances container (for children, etc.)

using	Shared = QSharedPointer< ccHObject >
	Shared pointer.

using	SharedContainer = std::vector< Shared >
	Shared instances container (for children, etc.)

using	GlobalBoundingBox = CCCoreLib::BoundingBoxTpl< double >
	Global (non-shifted) bounding-box.

Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID)

Public Member Functions
	ccHObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccHObject (const ccHObject &object)
	Copy constructor.

	~ccHObject () override
	Default destructor.

CC_CLASS_ENUM	getClassID () const override
	Returns class ID. More...

bool	isGroup () const
	Returns whether the instance is a group.

ccHObject *	getParent () const
	Returns parent object. More...

virtual QIcon	getIcon () const
	Returns the icon associated to this entity. More...

void	addDependency (ccHObject *otherObject, int flags, bool additive=true)
	Adds a new dependence (additive or not) More...

int	getDependencyFlagsWith (const ccHObject *otherObject) const
	Returns the dependency flags with a given object. More...

void	removeDependencyWith (ccHObject *otherObject)
	Removes any dependency flags with a given object. More...

void	removeDependencyFlag (ccHObject *otherObject, DEPENDENCY_FLAGS flag)
	Removes a given dependency flag. More...

virtual bool	addChild (ccHObject *child, int dependencyFlags=DP_PARENT_OF_OTHER, int insertIndex=-1)
	Adds a child. More...

unsigned	getChildrenNumber () const
	Returns the number of children. More...

unsigned int	getChildCountRecursive () const
	Returns the total number of children under this object recursively. More...

ccHObject *	getChild (unsigned childPos) const
	Returns the ith child. More...

ccHObject *	find (unsigned uniqueID) const
	Finds an entity in this object hierarchy. More...

unsigned	filterChildren (Container &filteredChildren, bool recursive=false, CC_CLASS_ENUM filter=CC_TYPES::OBJECT, bool strict=false, ccGenericGLDisplay *inDisplay=nullptr) const
	Collects the children corresponding to a certain pattern. More...

void	detachChild (ccHObject *child)
	Detaches a specific child. More...

void	detachAllChildren ()
	Removes a specific child. More...

void	removeChild (ccHObject *child)

void	removeChild (int pos)
	Removes a specific child given its index. More...

void	removeAllChildren ()
	Removes all children.

int	getChildIndex (const ccHObject *aChild) const
	Returns child index.

void	swapChildren (unsigned firstChildIndex, unsigned secondChildIndex)
	Swaps two children.

int	getIndex () const
	Returns index relatively to its parent or -1 if no parent.

void	transferChild (ccHObject *child, ccHObject &newParent)
	Transfer a given child to another parent.

void	transferChildren (ccHObject &newParent, bool forceFatherDependent=false)
	Transfer all children to another parent.

ccHObject *	getFirstChild () const
	Shortcut: returns first child.

ccHObject *	getLastChild () const
	Shortcut: returns last child.

bool	isAncestorOf (const ccHObject *anObject) const
	Returns true if the current object is an ancestor of the specified one.

virtual ccBBox	getOwnBB (bool withGLFeatures=false)
	Returns the entity's own bounding-box (with local/shifted coordinates) More...

virtual ccBBox	getBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
	Returns the local bounding-box of this entity and it's children. More...

virtual GlobalBoundingBox	getOwnGlobalBB (bool withGLFeatures=false)
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual bool	getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner)
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual GlobalBoundingBox	getGlobalBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
	Returns the global bounding-box of this entity and it's children. More...

virtual ccBBox	getDisplayBB_recursive (bool relative, const ccGenericGLDisplay *display=nullptr)
	Returns the bounding-box of this entity and it's children WHEN DISPLAYED. More...

virtual ccBBox	getOwnFitBB (ccGLMatrix &trans)
	Returns best-fit bounding-box (if available) More...

virtual void	drawBB (CC_DRAW_CONTEXT &context, const ccColor::Rgb &col)
	Draws the entity (and its children) bounding-box. More...

void	draw (CC_DRAW_CONTEXT &context) override
	Draws entity and its children. More...

bool	getAbsoluteGLTransformation (ccGLMatrix &trans) const
	Returns the absolute transformation (i.e. the actual displayed GL transformation) of an entity. More...

virtual bool	isDisplayed () const
	Returns whether the object is actually displayed (visible) or not.

virtual bool	isDisplayedIn (const ccGenericGLDisplay *display) const
	Returns whether the object is actually displayed (visible) in a given display or not.

virtual bool	isBranchEnabled () const
	Returns whether the object and all its ancestors are enabled.

	ccHObject_recursive_call1 (setSelected, bool, setSelected_recursive) ccHObject_recursive_call1(setDisplay

ccGenericGLDisplay setDisplay_recursive	ccHObject_recursive_call1 (removeFromDisplay, ccGenericGLDisplay *, removeFromDisplay_recursive) ccHObject_recursive_call0(prepareDisplayForRefresh

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive	ccHObject_recursive_call1 (refreshDisplay, bool, refreshDisplay_recursive) ccHObject_recursive_call0(resetGLTransformationHistory

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive	ccHObject_recursive_call0 (toggleActivation, toggleActivation_recursive) ccHObject_recursive_call0(toggleVisibility

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive	ccHObject_recursive_call0 (toggleColors, toggleColors_recursive) ccHObject_recursive_call0(toggleNormals

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive	ccHObject_recursive_call0 (toggleSF, toggleSF_recursive) ccHObject_recursive_call0(toggleShowName

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive	ccHObject_recursive_call0 (toggleMaterials, toggleMaterials_recursive) inline virtual void transferDisplay(ccGenericGLDisplay *oldDisplay
	Transfers the entity from one display to the other.

void	applyGLTransformation_recursive (const ccGLMatrix *trans=nullptr)
	Applies the active OpenGL transformation to the entity (recursive) More...

virtual void	notifyGeometryUpdate ()
	Notifies all dependent entities that the geometry of this entity has changed.

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

bool	fromFileNoChildren (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Custom version of ccSerializableObject::fromFile. More...

virtual bool	isShareable () const
	Returns whether object is shareable or not. More...

virtual void	setSelectionBehavior (SelectionBehavior mode)
	Sets selection behavior (when displayed) More...

virtual SelectionBehavior	getSelectionBehavior () const
	Returns selection behavior.

virtual unsigned	getUniqueIDForDisplay () const
	Returns object unique ID used for display. More...

virtual const ccGLMatrix &	getGLTransformationHistory () const
	Returns the transformation 'history' matrix. More...

virtual void	setGLTransformationHistory (const ccGLMatrix &mat)
	Sets the transformation 'history' matrix (handle with care!)

virtual void	resetGLTransformationHistory ()
	Resets the transformation 'history' matrix.

bool	pushDisplayState () override
	Pushes the current display state (overridden) More...

void	popDisplayState (bool apply=true) override
	Pops the last pushed display state (overridden) More...

Public Member Functions inherited from ccObject
	ccObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccObject (const ccObject &object)
	Copy constructor.

virtual CC_CLASS_ENUM	getClassID () const =0
	Returns class ID. More...

virtual QString	getName () const
	Returns object name. More...

virtual void	setName (const QString &name)
	Sets object name.

virtual unsigned	getUniqueID () const
	Returns object unique ID.

virtual void	setUniqueID (unsigned ID)
	Changes unique ID. More...

virtual bool	isEnabled () const
	Returns whether the object is enabled or not. More...

virtual void	setEnabled (bool state)
	Sets the "enabled" property. More...

virtual void	toggleActivation ()
	Toggles the "enabled" property.

virtual bool	isLocked () const
	Returns whether the object is locked or not. More...

virtual void	setLocked (bool state)
	Sets the "enabled" property. More...

bool	isLeaf () const

bool	isCustom () const

bool	isHierarchy () const

bool	isKindOf (CC_CLASS_ENUM type) const

bool	isA (CC_CLASS_ENUM type) const

QVariant	getMetaData (const QString &key) const
	Returns a given associated meta data. More...

bool	removeMetaData (const QString &key)
	Removes a given associated meta-data. More...

void	setMetaData (const QString &key, const QVariant &data)
	Sets a meta-data element. More...

void	setMetaData (const QVariantMap &dataset, bool overwrite=false)
	Sets several meta-data elements at a time. More...

bool	hasMetaData (const QString &key) const
	Returns whether a meta-data element with the given key exists or not. More...

const QVariantMap &	metaData () const
	Returns meta-data map (const only)

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor.

virtual bool	isSerializable () const
	Returns whether object is serializable of not. More...

virtual bool	toFile (QFile &out) const
	Saves data to binary stream. More...

virtual bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads data from binary stream. More...

Public Member Functions inherited from ccDrawableObject
	ccDrawableObject ()
	Default constructor.

	ccDrawableObject (const ccDrawableObject &object)
	Copy constructor.

virtual void	draw (CC_DRAW_CONTEXT &context)=0
	Draws entity and its children. More...

virtual bool	isVisible () const
	Returns whether entity is visible or not.

virtual void	setVisible (bool state)
	Sets entity visibility.

virtual void	toggleVisibility ()
	Toggles visibility.

virtual bool	isVisibilityLocked () const
	Returns whether visibility is locked or not.

virtual void	lockVisibility (bool state)
	Locks/unlocks visibility. More...

virtual bool	isSelected () const
	Returns whether entity is selected or not.

virtual void	setSelected (bool state)
	Selects/unselects entity.

virtual void	getDrawingParameters (glDrawParams &params) const
	Returns main OpenGL parameters for this entity. More...

virtual bool	hasColors () const
	Returns whether colors are enabled or not. More...

virtual bool	colorsShown () const
	Returns whether colors are shown or not.

virtual void	showColors (bool state)
	Sets colors visibility.

virtual void	toggleColors ()
	Toggles colors display state.

virtual bool	hasNormals () const
	Returns whether normals are enabled or not. More...

virtual bool	normalsShown () const
	Returns whether normals are shown or not. More...

virtual void	showNormals (bool state)
	Sets normals visibility. More...

virtual void	toggleNormals ()
	Toggles normals display state.

virtual bool	hasDisplayedScalarField () const
	Returns whether an active scalar field is available or not. More...

virtual bool	hasScalarFields () const
	Returns whether one or more scalar fields are instantiated. More...

virtual void	showSF (bool state)
	Sets active scalarfield visibility.

virtual void	toggleSF ()
	Toggles SF display state.

virtual bool	sfShown () const
	Returns whether active scalar field is visible.

virtual void	toggleMaterials ()
	Toggles material display state. More...

virtual void	showNameIn3D (bool state)
	Sets whether name should be displayed in 3D or not.

virtual bool	nameShownIn3D () const
	Returns whether name is displayed in 3D or not.

virtual void	toggleShowName ()
	Toggles name in 3D display state.

virtual bool	isColorOverridden () const
	Returns whether colors are currently overridden by a temporary (unique) color. More...

virtual const ccColor::Rgba &	getTempColor () const
	Returns current temporary (unique) color.

virtual void	setTempColor (const ccColor::Rgba &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	setTempColor (const ccColor::Rgb &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	enableTempColor (bool state)
	Set temporary color activation state.

virtual void	removeFromDisplay (const ccGenericGLDisplay *win)
	Unlinks entity from a GL display (only if it belongs to it of course)

virtual void	setDisplay (ccGenericGLDisplay *win)
	Sets associated GL display.

virtual ccGenericGLDisplay *	getDisplay () const
	Returns associated GL display.

virtual void	redrawDisplay ()
	Redraws associated GL display.

virtual void	prepareDisplayForRefresh ()
	Sets associated GL display 'refreshable' before global refresh. More...

virtual void	refreshDisplay (bool only2D=false)
	Refreshes associated GL display. More...

virtual void	setGLTransformation (const ccGLMatrix &trans)
	Associates entity with a GL transformation (rotation + translation) More...

virtual void	enableGLTransformation (bool state)
	Enables/disables associated GL transformation. More...

virtual bool	isGLTransEnabled () const
	Returns whether a GL transformation is enabled or not.

virtual const ccGLMatrix &	getGLTransformation () const
	Returns associated GL transformation. More...

virtual void	resetGLTransformation ()
	Resets associated GL transformation. More...

virtual void	rotateGL (const ccGLMatrix &rotMat)
	Multiplies (left) current GL transformation by a rotation matrix. More...

virtual void	translateGL (const CCVector3 &trans)
	Translates current GL transformation by a rotation matrix. More...

virtual void	removeAllClipPlanes ()
	Removes all clipping planes (if any)

virtual bool	addClipPlanes (const ccClipPlane &plane)
	Registers a new clipping plane. More...

virtual void	toggleClipPlanes (CC_DRAW_CONTEXT &context, bool enable)
	Enables or disables clipping planes (OpenGL) More...

virtual bool	pushDisplayState ()
	Pushes the current display state. More...

virtual void	popDisplayState (bool apply=true)
	Pops the last pushed display state. More...

virtual void	applyDisplayState (const DisplayState &state)
	Applies a display state.

Static Public Member Functions
static ccHObject *	New (CC_CLASS_ENUM objectType, const char *name=nullptr)
	Static factory. More...

static ccHObject *	New (const QString &pluginId, const QString &classId, const char *name=nullptr)
	Static factory (version to be used by external plugin factories) More...

Static Public Member Functions inherited from ccObject
static unsigned	GetCurrentDBVersion ()
	Returns current database version.

static void	SetUniqueIDGenerator (ccUniqueIDGenerator::Shared generator)
	Sets the unique ID generator.

static ccUniqueIDGenerator::Shared	GetUniqueIDGenerator ()
	Returns the unique ID generator.

static unsigned	GetNextUniqueID ()
	Returns a new unassigned unique ID. More...

static unsigned	GetLastUniqueID ()
	Returns last assigned unique ID. More...

static CC_CLASS_ENUM	ReadClassIDFromFile (QFile &in, short dataVersion)
	Helper: reads out class ID from a binary stream. More...

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Public Attributes
ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive ccGenericGLDisplay *	newDisplay

Protected Member Functions
virtual void	setParent (ccHObject *anObject)
	Sets parent object.

virtual void	drawMeOnly (CC_DRAW_CONTEXT &context)
	Draws the entity only (not its children) More...

virtual void	applyGLTransformation (const ccGLMatrix &trans)
	Applies a GL transformation to the entity. More...

virtual bool	toFile_MeOnly (QFile &out) const
	Save own object data. More...

virtual bool	fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads own object data. More...

virtual void	drawNameIn3D (CC_DRAW_CONTEXT &context)
	Draws the entity name in 3D. More...

virtual void	onDeletionOf (const ccHObject *obj)
	This method is called when another object is deleted. More...

virtual void	onUpdateOf (ccHObject *obj)
	This method is called when another object (geometry) is updated. More...

Protected Member Functions inherited from ccObject
virtual bool	getFlagState (CC_OBJECT_FLAG flag) const
	Returns flag state.

virtual void	setFlagState (CC_OBJECT_FLAG flag, bool state)
	Sets flag state. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Reimplemented from ccSerializableObject::fromFile. More...

Protected Attributes
ccHObject *	m_parent
	Parent.

Container	m_children
	Children.

SelectionBehavior	m_selectionBehavior
	Selection behavior.

std::map< ccHObject *, int >	m_dependencies
	Dependencies map. More...

ccGLMatrix	m_glTransHistory
	Cumulative GL transformation. More...

bool	m_isDeleting
	Flag to safely handle dependencies when the object is being deleted.

Protected Attributes inherited from ccObject
QString	m_name
	Object name.

unsigned	m_flags
	Object flags.

QVariantMap	m_metaData
	Associated meta-data.

Protected Attributes inherited from ccDrawableObject
bool	m_visible
	Specifies whether the object is visible or not. More...

bool	m_selected
	Specifies whether the object is selected or not.

bool	m_lockedVisibility
	Specifies whether the visibility can be changed by user or not.

bool	m_colorsDisplayed
	Specifies whether colors should be displayed.

bool	m_normalsDisplayed
	Specifies whether normals should be displayed.

bool	m_sfDisplayed
	Specifies whether scalar field should be displayed.

ccColor::Rgba	m_tempColor
	Temporary (unique) color.

bool	m_colorIsOverridden
	Temporary (unique) color activation state.

ccGLMatrix	m_glTrans
	Current GL transformation. More...

bool	m_glTransEnabled
	Current GL transformation activation state. More...

bool	m_showNameIn3D
	Whether name is displayed in 3D or not.

CCVector3d	m_nameIn3DPos
	Last 2D position of the '3D' name.

bool	m_nameIn3DPosIsValid
	Whether the last 2D position of the '3D' name is valid or not.

ccGenericGLDisplay *	m_currentDisplay
	Currently associated GL display.

ccClipPlaneSet	m_clipPlanes
	Active clipping planes (used for display only)

std::vector< DisplayState::Shared >	m_displayStateStack
	The stack of pushed display states.

Detailed Description

Hierarchical CloudCompare Object.

Member Enumeration Documentation

◆ DEPENDENCY_FLAGS

enum ccHObject::DEPENDENCY_FLAGS

Dependency flags.

Enumerator
DP_NONE	no dependency
DP_NOTIFY_OTHER_ON_DELETE	notify 'other' when deleted (will call ccHObject::onDeletionOf)
DP_NOTIFY_OTHER_ON_UPDATE	notify 'other' when its geometry is modified (will call ccHObject::onUpdateOf)
DP_DELETE_OTHER	delete 'other' before deleting itself
DP_PARENT_OF_OTHER	same as DP_DELETE_OTHER + declares itself as parent of 'other'

Constructor & Destructor Documentation

◆ ccHObject()

ccHObject::ccHObject	(	const QString &	name = `QString()`,
		unsigned	uniqueID = `ccUniqueIDGenerator::InvalidUniqueID`
	)

Default constructor.

Parameters

name	object name (optional)
uniqueID	unique ID (handle with care)

Member Function Documentation

◆ addChild()

bool ccHObject::addChild	(	ccHObject *	child,
		int	dependencyFlags = `DP_PARENT_OF_OTHER`,
		int	insertIndex = `-1`
	)

virtual

Adds a child.

Warning: by default (i.e. with the DP_PARENT_OF_OTHER flag) the child's parent will be automatically replaced by this instance. Moreover the child will be deleted

Parameters

child	child instance
dependencyFlags	dependency flags
insertIndex	insertion index (if <0, child is simply appended to the children list)

Returns: success

◆ addDependency()

void ccHObject::addDependency	(	ccHObject *	otherObject,
		int	flags,
		bool	additive = `true`
	)

Adds a new dependence (additive or not)

Parameters

otherObject	other object
flags	dependency flags (see DEPENDENCY_FLAGS)
additive	whether we should 'add' the flag(s) if there's already a dependence with the other object or not

◆ applyGLTransformation()

void ccHObject::applyGLTransformation ( const ccGLMatrix & trans )

protectedvirtual

Applies a GL transformation to the entity.

this = rotMat*(this-rotCenter)+(rotCenter+trans)

Parameters

trans a ccGLMatrix structure

Reimplemented in ccFacet, ccGenericPrimitive, ccMesh, ccPolyline, and ccSensor.

◆ applyGLTransformation_recursive()

void ccHObject::applyGLTransformation_recursive ( const ccGLMatrix * trans = nullptr )

Applies the active OpenGL transformation to the entity (recursive)

The input ccGLMatrix should be left to 0, unless you want to apply a pre-transformation.

Parameters

trans a ccGLMatrix structure (reference to)

◆ detachAllChildren()

void ccHObject::detachAllChildren ( )

Removes a specific child.

Warning: This method may delete the child if the DP_PARENT_OF_OTHER dependency flag is set for this child (use detachChild if you want to avoid deletion). Detaches all children

◆ detachChild()

void ccHObject::detachChild ( ccHObject * child )

Detaches a specific child.

This method does not delete the child. Removes any dependency between the flag and this object

◆ draw()

void ccHObject::draw ( CC_DRAW_CONTEXT & context )

overridevirtual

Draws entity and its children.

Implements ccDrawableObject.

◆ drawBB()

void ccHObject::drawBB	(	CC_DRAW_CONTEXT &	context,
		const ccColor::Rgb &	col
	)

virtual

Draws the entity (and its children) bounding-box.

Reimplemented in ccPolyline.

◆ drawMeOnly()

virtual void ccHObject::drawMeOnly ( CC_DRAW_CONTEXT & context )

inlineprotectedvirtual

Draws the entity only (not its children)

Reimplemented in cc2DLabel, cc2DViewportLabel, ccCameraSensor, ccClipBox, ccCoordinateSystem, ccFacet, ccGBLSensor, ccGenericMesh, ccImage, ccIndexedTransformationBuffer, ccKdTree, ccMesh, ccMeshGroup, ccOctreeProxy, ccPlane, and ccPolyline.

◆ drawNameIn3D()

void ccHObject::drawNameIn3D ( CC_DRAW_CONTEXT & context )

protectedvirtual

Draws the entity name in 3D.

Names is displayed at the center of the bounding box by default.

Reimplemented in ccSphere.

◆ filterChildren()

unsigned ccHObject::filterChildren	(	Container &	filteredChildren,
		bool	recursive = `false`,
		CC_CLASS_ENUM	filter = `CC_TYPES::OBJECT`,
		bool	strict = `false`,
		ccGenericGLDisplay *	inDisplay = `nullptr`
	)		const

Collects the children corresponding to a certain pattern.

Parameters

filteredChildren	result container
recursive	specifies if the search should be recursive
filter	pattern for children selection
strict	whether the search is strict on the type (i.e 'isA') or not (i.e. 'isKindOf')
inDisplay	[optional] display in which the children are displayed

Returns: number of collected children

◆ find()

ccHObject * ccHObject::find ( unsigned uniqueID ) const

Finds an entity in this object hierarchy.

Parameters

uniqueID child unique ID

Returns: child (or nullptr if not found)

◆ fromFile()

bool ccHObject::fromFile	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns: success

Reimplemented from ccSerializableObject.

◆ fromFile_MeOnly()

bool ccHObject::fromFile_MeOnly	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

protectedvirtual

Loads own object data.

Called by 'fromFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Parameters

in	input file
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Reimplemented in cc2DLabel, cc2DViewportLabel, cc2DViewportObject, NormsIndexesTableType, ccArray< Type, N, ComponentType >, ccArray< ccColor::Rgb, 3, ColorCompType >, ccArray< CompressedNormType, 1, CompressedNormType >, ccArray< CCVector3, 3, PointCoordinateType >, ccArray< ccColor::Rgba, 4, ColorCompType >, ccArray< TexCoords2D, 2, float >, ccBox, ccCameraSensor, ccCone, ccCoordinateSystem, ccDish, ccExtru, ccFacet, ccGBLSensor, ccGenericMesh, ccGenericPointCloud, ccGenericPrimitive, ccImage, ccIndexedTransformationBuffer, ccMaterialSet, ccMesh, ccMeshGroup, ccPlane, ccPolyline, ccQuadric, ccSensor, ccSphere, ccSubMesh, and ccTorus.

◆ fromFileNoChildren()

bool ccHObject::fromFileNoChildren	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

Custom version of ccSerializableObject::fromFile.

This is used to load only the object's part of a stream (and not its children)

Parameters

in	input file (already opened)
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to convert old IDs to new ones

Returns: success

◆ getAbsoluteGLTransformation()

bool ccHObject::getAbsoluteGLTransformation ( ccGLMatrix & trans ) const

Returns the absolute transformation (i.e. the actual displayed GL transformation) of an entity.

Parameters

[out] trans absolute transformation

Returns: whether a GL transformation is actually enabled or not

◆ getBB_recursive()

ccBBox ccHObject::getBB_recursive	(	bool	withGLFeatures = `false`,
		bool	onlyEnabledChildren = `true`
	)

virtual

Returns the local bounding-box of this entity and it's children.

Parameters

withGLFeatures	whether to take into account display-only elements (if any)
onlyEnabledChildren	only consider the 'enabled' children

Returns: bounding-box

◆ getChild()

ccHObject * ccHObject::getChild ( unsigned childPos ) const

inline

Returns the ith child.

Parameters

childPos child position

Returns: child object (or nullptr if wrong position)

◆ getChildCountRecursive()

unsigned int ccHObject::getChildCountRecursive ( ) const

Returns the total number of children under this object recursively.

Returns: Number of children

◆ getChildrenNumber()

unsigned ccHObject::getChildrenNumber ( ) const

inline

Returns the number of children.

Returns: children number

◆ getClassID()

CC_CLASS_ENUM ccHObject::getClassID ( ) const

inlineoverridevirtual

Returns class ID.

Returns: class unique ID

Implements ccObject.

Reimplemented in ccArray< ccColor::Rgb, 3, ColorCompType >, ccArray< CompressedNormType, 1, CompressedNormType >, ccArray< CCVector3, 3, PointCoordinateType >, ccArray< ccColor::Rgba, 4, ColorCompType >, ccArray< TexCoords2D, 2, float >, ccImage, ccIndexedTransformationBuffer, ccKdTree, ccMaterialSet, ccMesh, ccMeshGroup, ccOctreeProxy, ccPlane, ccPolyline, ccQuadric, ccSensor, ccSphere, ccSubMesh, and ccTorus.

◆ getDependencyFlagsWith()

int ccHObject::getDependencyFlagsWith ( const ccHObject * otherObject ) const

Returns the dependency flags with a given object.

Parameters

otherObject other object

◆ getDisplayBB_recursive()

ccBBox ccHObject::getDisplayBB_recursive	(	bool	relative,
		const ccGenericGLDisplay *	display = `nullptr`
	)

virtual

Returns the bounding-box of this entity and it's children WHEN DISPLAYED.

Children's GL transformation is taken into account (if enabled).

Parameters

relative	whether the bounding-box is relative (i.e. in the entity's local coordinate system) or absolute (in which case the parent's GL transformation will be taken into account)
display	if not null, this method will return the bounding-box of this entity (and its children) in the specified 3D view (i.e. potentially not visible)

Returns: bounding-box

◆ getGlobalBB_recursive()

ccHObject::GlobalBoundingBox ccHObject::getGlobalBB_recursive	(	bool	withGLFeatures = `false`,
		bool	onlyEnabledChildren = `true`
	)

virtual

Returns the global bounding-box of this entity and it's children.

Parameters

withGLFeatures	whether to take into account display-only elements (if any)
onlyEnabledChildren	only consider the 'enabled' children

Returns: bounding-box

◆ getGLTransformationHistory()

virtual const ccGLMatrix & ccHObject::getGLTransformationHistory ( ) const

inlinevirtual

Returns the transformation 'history' matrix.

Reimplemented in ccGenericPrimitive, and ccMesh.

◆ getIcon()

QIcon ccHObject::getIcon ( ) const

virtual

Returns the icon associated to this entity.

ccDBRoot will call this method: if an invalid icon is returned the default icon for that type will be used instead.

Returns: invalid icon by default (to be re-implemented by child class)

◆ getOwnBB()

ccBBox ccHObject::getOwnBB ( bool withGLFeatures = false )

virtual

Returns the entity's own bounding-box (with local/shifted coordinates)

Children bounding-boxes are ignored.

Parameters

withGLFeatures whether to take into account display-only elements (if any)

Returns: bounding-box

Reimplemented in ccCameraSensor, ccClipBox, ccGBLSensor, ccGenericPointCloud, ccIndexedTransformationBuffer, ccKdTree, ccMesh, ccOctreeProxy, ccPolyline, and ccSubMesh.

◆ getOwnFitBB()

virtual ccBBox ccHObject::getOwnFitBB ( ccGLMatrix & trans )

inlinevirtual

Returns best-fit bounding-box (if available)

Warning: Only suitable for leaf objects (i.e. without children) Therefore children bboxes are always ignored.; This method is not supported by all entities! (returns the axis-aligned bounding-box by default).

Parameters

[out] trans associated transformation (so that the bounding-box can be displayed in the right position!)

Returns: fit bounding-box

Reimplemented in ccCameraSensor, ccGBLSensor, ccImage, ccPlane, and ccQuadric.

◆ getOwnGlobalBB() [1/2]

ccHObject::GlobalBoundingBox ccHObject::getOwnGlobalBB ( bool withGLFeatures = false )

virtual

Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant)

Children bounding-boxes are ignored. May differ from the (local) bounding-box if the entity is shifted

Parameters

withGLFeatures whether to take into account display-only elements (if any)

Returns: global bounding-box

Reimplemented in ccShiftedObject.

◆ getOwnGlobalBB() [2/2]

bool ccHObject::getOwnGlobalBB	(	CCVector3d &	minCorner,
		CCVector3d &	maxCorner
	)

virtual

Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant)

Children bounding-boxes are ignored. By default this method returns the local bounding-box! But it may differ from the (local) bounding-box if the entity is shifted.

Parameters

[out]	minCorner	min global bounding-box corner
[out]	maxCorner	max global bounding-box corner

Returns: whether the bounding box is valid or not

Reimplemented in ccShiftedObject.

◆ getParent()

ccHObject * ccHObject::getParent ( ) const

inline

Returns parent object.

Returns: parent object (nullptr if no parent)

◆ getUniqueIDForDisplay()

virtual unsigned ccHObject::getUniqueIDForDisplay ( ) const

inlinevirtual

Returns object unique ID used for display.

Reimplemented in ccMesh, and ccPolyline.

◆ isSerializable()

bool ccHObject::isSerializable ( ) const

overridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Reimplemented in ccArray< ccColor::Rgb, 3, ColorCompType >, ccArray< CompressedNormType, 1, CompressedNormType >, ccArray< CCVector3, 3, PointCoordinateType >, ccArray< ccColor::Rgba, 4, ColorCompType >, ccArray< TexCoords2D, 2, float >, ccImage, ccIndexedTransformationBuffer, ccMaterialSet, ccMesh, ccMeshGroup, ccPolyline, ccSensor, and ccSubMesh.

◆ isShareable()

virtual bool ccHObject::isShareable ( ) const

inlinevirtual

Returns whether object is shareable or not.

If object is father dependent and 'shared', it won't be deleted but 'released' instead.

Reimplemented in ccArray< Type, N, ComponentType >, ccArray< ccColor::Rgb, 3, ColorCompType >, ccArray< CompressedNormType, 1, CompressedNormType >, ccArray< CCVector3, 3, PointCoordinateType >, ccArray< ccColor::Rgba, 4, ColorCompType >, ccArray< TexCoords2D, 2, float >, and ccMaterialSet.

◆ New() [1/2]

ccHObject * ccHObject::New	(	CC_CLASS_ENUM	objectType,
		const char *	name = `nullptr`
	)

static

Static factory.

Warning: Objects depending on other structures (such as meshes or polylines that should be linked with point clouds playing the role of vertices) are returned 'naked'.

Parameters

objectType	object type
name	object name (optional)

Returns: instantiated object (if type is valid) or 0

◆ New() [2/2]

ccHObject * ccHObject::New	(	const QString &	pluginId,
		const QString &	classId,
		const char *	name = `nullptr`
	)

static

Static factory (version to be used by external plugin factories)

Two strings are used as keys, one for the plugin name and one for the class name. Those strings will typically be saved as metadata of a custom object

◆ onDeletionOf()

void ccHObject::onDeletionOf ( const ccHObject * obj )

protectedvirtual

This method is called when another object is deleted.

For internal use.

Reimplemented in cc2DLabel, ccImage, and ccMesh.

◆ onUpdateOf()

virtual void ccHObject::onUpdateOf ( ccHObject * obj )

inlineprotectedvirtual

This method is called when another object (geometry) is updated.

For internal use.

Reimplemented in ccMesh, and ccSubMesh.

◆ popDisplayState()

void ccHObject::popDisplayState ( bool apply = true )

overridevirtual

Pops the last pushed display state (overridden)

Reimplemented from ccDrawableObject.

◆ pushDisplayState()

bool ccHObject::pushDisplayState ( )

overridevirtual

Pushes the current display state (overridden)

Reimplemented from ccDrawableObject.

◆ removeChild()

void ccHObject::removeChild ( int pos )

Removes a specific child given its index.

Warning: This method may delete the child if the DP_PARENT_OF_OTHER dependency flag is set for this child (use detachChild if you want to avoid deletion).

◆ removeDependencyFlag()

void ccHObject::removeDependencyFlag	(	ccHObject *	otherObject,
		DEPENDENCY_FLAGS	flag
	)

Removes a given dependency flag.

Parameters

otherObject	other object
flag	dependency flag to remove (see DEPENDENCY_FLAGS)

◆ removeDependencyWith()

void ccHObject::removeDependencyWith ( ccHObject * otherObject )

Removes any dependency flags with a given object.

Parameters

otherObject other object

◆ setSelectionBehavior()

virtual void ccHObject::setSelectionBehavior ( SelectionBehavior mode )

inlinevirtual

Sets selection behavior (when displayed)

Warning: SELECTION_FIT_BBOX relies on the 'ccDrawableObject::getFitBB' method (which is not supported by all entities).

◆ toFile()

bool ccHObject::toFile ( QFile & out ) const

overridevirtual

Saves data to binary stream.

Parameters

out	output file (already opened)

Returns: success

Reimplemented from ccSerializableObject.

◆ toFile_MeOnly()

bool ccHObject::toFile_MeOnly ( QFile & out ) const

protectedvirtual

Save own object data.

Called by 'toFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Reimplemented in cc2DLabel, cc2DViewportLabel, cc2DViewportObject, ccArray< Type, N, ComponentType >, ccArray< ccColor::Rgb, 3, ColorCompType >, ccArray< CompressedNormType, 1, CompressedNormType >, ccArray< CCVector3, 3, PointCoordinateType >, ccArray< ccColor::Rgba, 4, ColorCompType >, ccArray< TexCoords2D, 2, float >, ccBox, ccCameraSensor, ccCone, ccCoordinateSystem, ccDish, ccExtru, ccFacet, ccGBLSensor, ccGenericMesh, ccGenericPointCloud, ccGenericPrimitive, ccImage, ccIndexedTransformationBuffer, ccMaterialSet, ccMesh, ccMeshGroup, ccPlane, ccPolyline, ccQuadric, ccSensor, ccSphere, ccSubMesh, and ccTorus.

Member Data Documentation

◆ m_dependencies

std::map<ccHObject*, int> ccHObject::m_dependencies

protected

Dependencies map.

First parameter: other object Second parameter: dependency flags (see DEPENDENCY_FLAGS)

◆ m_glTransHistory

ccGLMatrix ccHObject::m_glTransHistory

protected

Cumulative GL transformation.

History of all the applied transformations since the creation of the object as a single transformation.

◆ newDisplay

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive ccGenericGLDisplay* ccHObject::newDisplay

Initial value:

{
                if (getDisplay() == oldDisplay)
                {
                        setDisplay(newDisplay);
                }

                for (auto child : m_children)
                {
                        child->transferDisplay(oldDisplay, newDisplay);
                }
        }


        unsigned findMaxUniqueID_recursive() const

The documentation for this class was generated from the following files:

ccHObject.h
ccHObject.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ DEPENDENCY_FLAGS

Constructor & Destructor Documentation

◆ ccHObject()

Member Function Documentation

◆ addChild()

◆ addDependency()

◆ applyGLTransformation()

◆ applyGLTransformation_recursive()

◆ detachAllChildren()

◆ detachChild()

◆ draw()

◆ drawBB()

◆ drawMeOnly()

◆ drawNameIn3D()

◆ filterChildren()

◆ find()

◆ fromFile()

◆ fromFile_MeOnly()

◆ fromFileNoChildren()

◆ getAbsoluteGLTransformation()

◆ getBB_recursive()

◆ getChild()

◆ getChildCountRecursive()

◆ getChildrenNumber()

◆ getClassID()

◆ getDependencyFlagsWith()

◆ getDisplayBB_recursive()

◆ getGlobalBB_recursive()

◆ getGLTransformationHistory()

◆ getIcon()

◆ getOwnBB()

◆ getOwnFitBB()

◆ getOwnGlobalBB() [1/2]

◆ getOwnGlobalBB() [2/2]

◆ getParent()

◆ getUniqueIDForDisplay()

◆ isSerializable()

◆ isShareable()

◆ New() [1/2]

◆ New() [2/2]

◆ onDeletionOf()

◆ onUpdateOf()

◆ popDisplayState()

◆ pushDisplayState()

◆ removeChild()

◆ removeDependencyFlag()

◆ removeDependencyWith()

◆ setSelectionBehavior()

◆ toFile()

◆ toFile_MeOnly()

Member Data Documentation

◆ m_dependencies

◆ m_glTransHistory

◆ newDisplay
