ccShiftAndScaleCloudDlg Class Reference

Dialog for selection of cloud center. More...

#include <ccShiftAndScaleCloudDlg.h>

Inheritance diagram for ccShiftAndScaleCloudDlg:

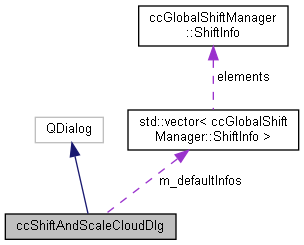

Collaboration diagram for ccShiftAndScaleCloudDlg:

Public Member Functions
	ccShiftAndScaleCloudDlg (const CCVector3d &Pg, double Dg=0, QWidget *parent=nullptr)
	Default constructor. More...
	ccShiftAndScaleCloudDlg (const CCVector3d &Pl, double Dl, const CCVector3d &Pg, double Dg, QWidget *parent=nullptr)
	Reverse mode constructor. More...
void	setShiftFieldsPrecision (int precision)
	Sets the Shift fields (X, Y and Z) precision (default should be 2)
virtual	~ccShiftAndScaleCloudDlg ()
	Destructor.
CCVector3d	getShift () const
	Returns shift.
double	getScale () const
	Returns scale.
bool	applyAll () const
	Whether shift should be applied to all files.
bool	cancelled () const
	Whether the user has clicked on the cancel button or not.
void	showScaleItems (bool state)
	Whether to show dialog items related to scale.
void	showApplyAllButton (bool state)
	Whether to show the 'Apply all' button or not.
void	showApplyButton (bool state)
	Whether to show the 'Apply' button or not.
void	showNoButton (bool state)
	Whether to show the 'No' button or not.
void	showCancelButton (bool state)
	Whether to show the 'Cancel' button or not.
void	showWarning (bool state)
	Whether to show or not the warning about non pertinent shift information.
void	showTitle (bool state)
	Whether to show or not the title.
void	showKeepGlobalPosCheckbox (bool state)
	Whether to show or not the 'Keep global position' checkbox.
bool	keepGlobalPos () const
	Returns whether the global position should be preserved or not.
void	setKeepGlobalPos (bool state)
	Sets whether the global position should be preserved or not.
void	showPreserveShiftOnSave (bool state)
	Whether to show or not the 'Preserve shift on save' checkbox.
bool	preserveShiftOnSave () const
	Returns whether the global shift should be preserved or not.
void	setPreserveShiftOnSave (bool state)
	Sets whether the global shift should be preserved or not.
int	addShiftInfo (const ccGlobalShiftManager::ShiftInfo &info)
	Adds shift info to the combox. More...
int	addShiftInfo (const std::vector< ccGlobalShiftManager::ShiftInfo > &info)
	Adds shift info to the combox. More...
bool	getInfo (size_t index, ccGlobalShiftManager::ShiftInfo &info) const
	Returns a given input info.
size_t	infoCount () const
	Returns the number of info currently stored.
void	setCurrentProfile (int index)
	Sets the current combo-box entry (profile)

Static Public Member Functions
static void	SetLastInfo (const CCVector3d &shift, double scale)
	Sets the last shift and scale information.

Protected Member Functions
void	onLoadIndexChanged (int)
	Slot called when the 'loadComboBox' index changes.
void	onGlobalPosCheckBoxToggled (bool)
	Slot called when the 'Keep global position' checkbox is toggled.
void	onClick (QAbstractButton *button)
	Analyzes the clicked button.
void	updateGlobalAndLocalSystems ()
	Updates info on the global and local coordinate systems.
void	displayMoreInfo ()
	Displays more info about global shift mechanism.
void	init ()
	Initialization routine.
void	setShift (const CCVector3d &shift)
	Sets displayed shift.
void	setScale (double scale)
	Sets displayed scale.
void	updateLocalSystem ()
	Updates info on the local coordinate system.
void	updateGlobalSystem ()
	Updates info on the global coordinate system.

Protected Attributes
Ui_GlobalShiftAndScaleDlg *	m_ui
	Associated UI.
bool	m_applyAll
	Whether shift should be applied to all files.
bool	m_cancel
	Whether the user has clicked on Cancel or not.
std::vector< ccGlobalShiftManager::ShiftInfo >	m_defaultInfos
	Default infos (typically loaded from the global_shift_list.txt' file)
int	m_activeInfoIndex
	Active info entry index.
CCVector3d	m_originalPoint
	Original coordinate system point.
double	m_originalDiagonal
	Original coordinate system diagonal.
CCVector3d	m_localPoint
	Local coordinate system point (reversed mode only)
double	m_localDiagonal
	Local coordinate system diagonal (reversed mode only)
bool	m_reversedMode
	Whether the reverse mode is active or not.

Detailed Description

Dialog for selection of cloud center.

Constructor & Destructor Documentation

ccShiftAndScaleCloudDlg() [1/2]

ccShiftAndScaleCloudDlg::ccShiftAndScaleCloudDlg	(	const CCVector3d &	Pg,
		double	Dg = 0,
		QWidget *	parent = nullptr
	)

Default constructor.

Parameters

Pg	a point expressed in the original coordinate system
Dg	bounding box diagonal in the original coordinate system (or <= 0 to ignore)
parent	parent widget

ccShiftAndScaleCloudDlg() [2/2]

ccShiftAndScaleCloudDlg::ccShiftAndScaleCloudDlg	(	const CCVector3d &	Pl,
		double	Dl,
		const CCVector3d &	Pg,
		double	Dg,
		QWidget *	parent = nullptr
	)

Reverse mode constructor.

Parameters

Pl	a point expressed in the local coordinate system
Dl	bounding box diagonal in the local coordinate system
Pg	a point expressed in the original coordinate system
Dg	bounding box diagonal in the original coordinate system
parent	parent widget

Member Function Documentation

addShiftInfo() [1/2]

int ccShiftAndScaleCloudDlg::addShiftInfo

(

const ccGlobalShiftManager::ShiftInfo &

info

)

Adds shift info to the combox.

Parameters

info	shift info

Returns

index in combo-box

addShiftInfo() [2/2]

int ccShiftAndScaleCloudDlg::addShiftInfo

(

const std::vector< ccGlobalShiftManager::ShiftInfo > &

info

)

Adds shift info to the combox.

Parameters

info	shift info

Returns

index in combo-box

---

The documentation for this class was generated from the following files:

• ccShiftAndScaleCloudDlg.h
• ccShiftAndScaleCloudDlg.cpp
