MainWindow Class Reference

Main window. More...

#include <mainwindow.h>

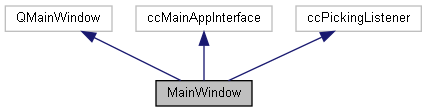

Inheritance diagram for MainWindow:

Collaboration diagram for MainWindow:

Public Member Functions
ccGLWindow *	getActiveGLWindow () override
	Returns active GL sub-window (if any)
QMdiSubWindow *	getMDISubWindow (ccGLWindow *win)
	Returns MDI area subwindow corresponding to a given 3D view.
ccGLWindow *	getGLWindow (int index) const
	Returns a given views.
int	getGLWindowCount () const
	Returns the number of 3D views.
virtual void	addToDB (const QStringList &filenames, QString fileFilter=QString(), ccGLWindow *destWin=nullptr)
	Tries to load several files (and then pushes them into main DB) More...
void	addToDB (ccHObject *obj, bool updateZoom=false, bool autoExpandDBTree=true, bool checkDimensions=false, bool autoRedraw=true) override
void	registerOverlayDialog (ccOverlayDialog *dlg, Qt::Corner pos) override
void	unregisterOverlayDialog (ccOverlayDialog *dlg) override
void	updateOverlayDialogsPlacement () override
void	removeFromDB (ccHObject *obj, bool autoDelete=true) override
void	setSelectedInDB (ccHObject *obj, bool selected) override
void	dispToConsole (QString message, ConsoleMessageLevel level=STD_CONSOLE_MESSAGE) override
void	forceConsoleDisplay () override
ccHObject *	dbRootObject () override
QMainWindow *	getMainWindow () override
ccHObject *	loadFile (QString filename, bool silent) override
const ccHObject::Container &	getSelectedEntities () const override
void	createGLWindow (ccGLWindow *&window, QWidget *&widget) const override
void	destroyGLWindow (ccGLWindow *) const override
ccUniqueIDGenerator::Shared	getUniqueIDGenerator () override
ccColorScalesManager *	getColorScalesManager () override
void	spawnHistogramDialog (const std::vector< unsigned > &histoValues, double minVal, double maxVal, QString title, QString xAxisLabel) override
ccPickingHub *	pickingHub () override
ccHObjectContext	removeObjectTemporarilyFromDBTree (ccHObject *obj) override
void	putObjectBackIntoDBTree (ccHObject *obj, const ccHObjectContext &context) override
void	onItemPicked (const PickedItem &pi) override
	Inherited from ccPickingListener.
virtual ccDBRoot *	db ()
	Returns real 'dbRoot' object.
void	addEditPlaneAction (QMenu &menu) const
	Adds the "Edit Plane" action to the given menu. More...
void	initPlugins ()
	Sets up the UI (menus and toolbars) based on loaded plugins.
void	updatePropertiesView ()
	Updates the 'Properties' view.

Static Public Member Functions
static MainWindow *	TheInstance ()
	Returns the unique instance of this object.
static ccGLWindow *	GetActiveGLWindow ()
	Static shortcut to MainWindow::getActiveGLWindow.
static ccGLWindow *	GetGLWindow (const QString &title)
	Returns a given GL sub-window (determined by its title) More...
static void	GetGLWindows (std::vector< ccGLWindow * > &glWindows)
	Returns all GL sub-windows. More...
static void	RefreshAllGLWindow (bool only2D=false)
	Static shortcut to MainWindow::refreshAll.
static void	UpdateUI ()
	Static shortcut to MainWindow::updateUI.
static void	DestroyInstance ()
	Deletes current main window instance.

Protected Member Functions
	MainWindow ()
	Default constructor.
	~MainWindow () override
	Default desctructor.

Detailed Description

Main window.

Member Function Documentation

addEditPlaneAction()

void MainWindow::addEditPlaneAction

(

QMenu &

menu

)

const

Adds the "Edit Plane" action to the given menu.

This is the only MainWindow UI action used externally (by ccDBRoot).

addToDB()

void MainWindow::addToDB ( const QStringList &  filenames, QString  fileFilter = QString(), ccGLWindow *  destWin = nullptr  )

virtual

Tries to load several files (and then pushes them into main DB)

Parameters

filenames	list of all filenames
fileFilter	selected file filter (i.e. type)
destWin	destination window (0 = active one)

GetGLWindow()

ccGLWindow * MainWindow::GetGLWindow ( const QString &  title )

static

Returns a given GL sub-window (determined by its title)

Parameters

title

window title

GetGLWindows()

void MainWindow::GetGLWindows ( std::vector< ccGLWindow * > &  glWindows )

static

Returns all GL sub-windows.

Parameters

[in,out]

glWindows

vector to store all sub-windows

---

The documentation for this class was generated from the following files:

• mainwindow.h
• mainwindow.cpp
