Slope Calculations Question

[orinn]

As always thank you for this incredible program.

I'm trying to calculate slope for a parking lot. Basically I'm interested in anything over a 2% slope. I used a height grid to get my lowest Z, calculated normal's, then convert normal's to dip/dip direction SF. When I look at dip (degrees) the numbers seem to be set at intervals. If I look at the values they go

Degree - Slope %
0.6379 = 1.11
0.6482 = 1.13
1.4491 = 2.53
1.4727 = 2.57
1.9755 = 3.45
I'm hoping to better define what falls under and over 2% slope.

I'm not sure why the calculations for degrees jump instead of a smooth transition. Is there a better way to go about this?

[daniel]

There are two possible causes:
[*] if you are computing the normals on the 2.5D cloud output by the Rasterize tool, then maybe the sampling is the cause?
[*] otherwise it may be due to the normals compression scheme we use (in order to store the normals on 2 bytes instead of 12 ;). This compression scheme works very well for visualization purposes (as the eye can't make the difference) but it may be the cause of those intervals (however I would have expected to see more regularly sampled angles in this case).

Can you maybe share your cloud (or a part) with me?

[orinn]

I considered that it might be the Rasterize tool, so I ran normal detection without using it, still have the same problem.

In the link below is the parking lot with normals detected via height. I have tested it with plane and triangulation and see similar results with the numbers.

Link to .bin
https://eco3d.egnyte.com/dl/xIsxyDrTXH

Edit: I also tried running the cloud through meshlab for normal detection, and then back through cloud compare. problem persisted.

[daniel]

Okay, the issue was indeed the limited number of orientations due to the coding of normals on 15 bytes (which only allows for 32K directions).

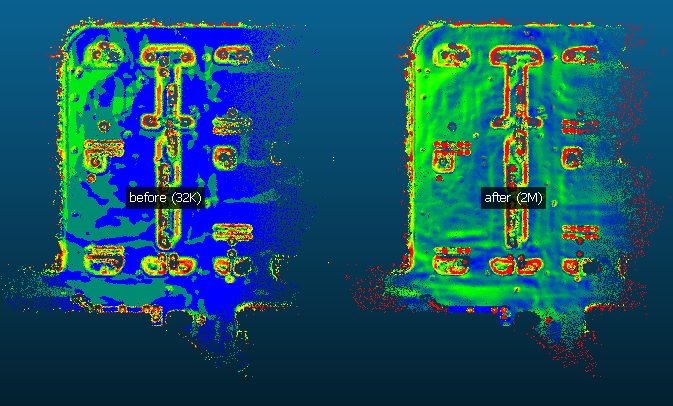

I've upgraded this to 21 bytes (= 2M directions) so as to get a much finer result:


You can test this with the latest beta version (I've just updated it).

(of course the result also depends on the way you compute normals - the bigger the radius is, the more uniform the normals will be)

[orinn]

Wow, that really makes a big difference. It looks amazing, thank you very much sir.
