Re: Scaling the Color Scale
Posted: Thu Aug 26, 2021 11:48 pm
by dcobra
I have had this problem as well and greatly appreciate the fix!
Re: Scaling the Color Scale
Posted: Mon Sep 06, 2021 12:15 pm
by fuji1205
daniel wrote: ↑Thu Aug 26, 2021 8:15 pm
I have found the bug (and hopefully fixed it, you can try with the new 2.12.alpha version online).
And to create the color ramp you want (with the trick I suggest), with fixed color, you have to start with an absolute color scale and then:
1) reduce it to 2 steps
2) make sure the steps are above the maximum value you target (e.g. 1.0 and 2.0). And then:
3) select the first step, set the right color (the farthest), and edit its value to the minimum value (-0.01) then click somewhere else
4) click anywhere between the 2 steps, and edit the newly created step
5) set the color to the next segment color, and edit its value to something very close (-0.099) then click somewhere else
6) click anywhere between the 2 last steps, and edit the newly created step
7) set the same color and edit its value to the next intersection (-0.005) then click somewhere else
8) repeat from step 4
Appreciate for your help!
This is what I can do:
- 圖片 72.jpg (101.88 KiB) Viewed 2045 times

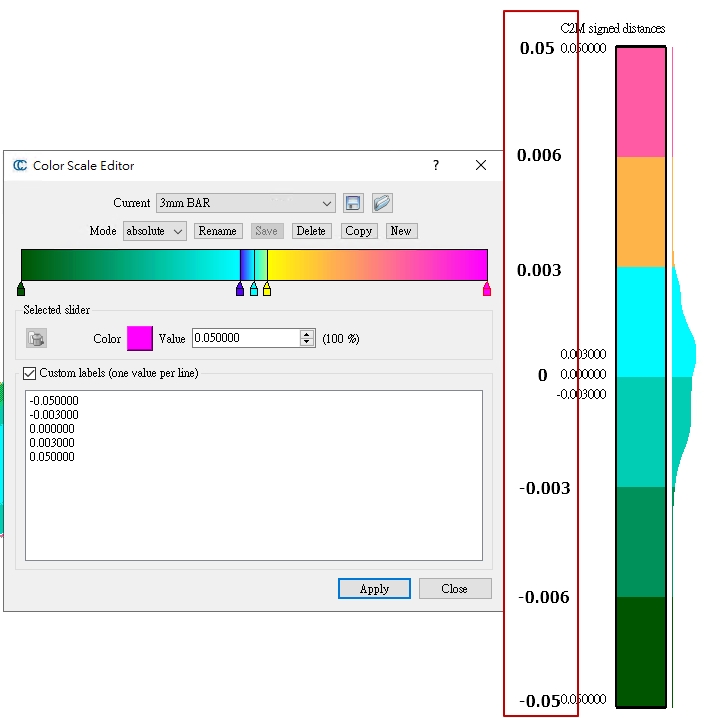

But may I set the color scale bar like this?
- 圖片 73.jpg (118.15 KiB) Viewed 2045 times
Re: Scaling the Color Scale
Posted: Mon Sep 06, 2021 7:24 pm
by daniel
Here is what I was able to create:
- colorscale.jpg (55.58 KiB) Viewed 2029 times
Here is the XML file if you want to load it in CloudCompare (just save that in a file with '.xml' as extension):
Code: Select all
<?xml version="1.0" encoding="UTF-8"?>
<CloudCompare>
<ColorScale version="1">
<Properties>
<name>3mm BAR</name>
<uuid>{bd7b4322-6026-4ec0-bbad-5ecf479d72d5}</uuid>
<absolute>1</absolute>
<minValue>-0.05</minValue>
<range>0.1</range>
</Properties>
<Data>
<step r="0" g="85" b="0" pos="0"/>
<step r="0" g="85" b="0" pos="0.4399"/>
<step r="0" g="145" b="90" pos="0.44"/>
<step r="0" g="145" b="90" pos="0.4699"/>
<step r="1" g="205" b="180" pos="0.47"/>
<step r="1" g="205" b="180" pos="0.499"/>
<step r="1" g="250" b="255" pos="0.5"/>
<step r="1" g="250" b="255" pos="0.53"/>
<step r="254" g="180" b="73" pos="0.5301"/>
<step r="254" g="180" b="73" pos="0.56"/>
<step r="255" g="91" b="164" pos="0.5601"/>
<step r="255" g="91" b="164" pos="1"/>
<label val="-0.05"/>
<label val="-0.006"/>
<label val="-0.003"/>
<label val="0"/>
<label val="0.003"/>
<label val="0.006"/>
<label val="0.05"/>
</Data>
</ColorScale>
</CloudCompare>
Re: Scaling the Color Scale
Posted: Fri Jun 14, 2024 8:44 am
by luca9801
Hello Daniel,
I tried to create a color scale like you did. But my color scale only changes the colors through the gradient.
How can I create a Color Scale withou the gradient.
Thank you.
Re: Scaling the Color Scale
Posted: Tue Jun 18, 2024 8:52 pm
by daniel
You have to create two 'steps' very close to each other (e.g. 1.0 and 1.0001)
