Re: Texture of collapsed towers
Posted: Fri Oct 16, 2015 1:31 pm
by Dimitri
Great !
Jean-Baptiste, to get close to a "drawing" you could use the PCV plugin (computes sky visibility which is by definition low between bricks) or a curvature at the scale typical of the brick spacing. Then you play with the saturation of the color scale in BW mode and you should be close to have all the bricks standing out.
Or even funnier: you separate the bricks using the PCV or Curvature scalar (min/max function), and then you do a Connected Component segmentation to separate all bricks and have them in random colors. Would be great for visualization.
Dim
Re: Texture of collapsed towers
Posted: Fri Oct 16, 2015 7:19 pm
by Strider75
Thanks Daniel! This is a great tool for many different applications. Great work as always.
Re: Texture of collapsed towers
Posted: Tue Oct 20, 2015 8:52 pm
by kachlica
Just a question. Is this fantastic "uwrap" tool appliable also upon textured mesh?
Re: Texture of collapsed towers
Posted: Tue Oct 20, 2015 8:55 pm
by kachlica
Just a question. Is this fantastic "unwrap" procedure appliable on textured mesh as well?
Re: Texture of collapsed towers
Posted: Tue Oct 20, 2015 9:50 pm
by daniel
No, only for clouds for now!
Re: Texture of collapsed towers
Posted: Fri Mar 25, 2016 2:33 am
by geophotologist
Hi Daniel,
I am on Mac and using version 2.6.1, is the unfold button included in this version? I cannot see it in the extract section tools.
Also how would you unwrap a tunnel? would you put the polyline down the length of the tunnel or around it (See images)?
Also the Extract Sections tool does not work most times. When I right click to end the polyline it disappears.
Re: Texture of collapsed towers
Posted: Fri Mar 25, 2016 7:49 am
by daniel
Indeed, the unfold option is not available on Mac OS yet (but CloudCompare 2.7 version is about to be released and will be supported on all platforms... stay tuned).
To 'unwrap' the tunnel, you would have to use the second option (draw the polyline around it).
And the issue you report is probably a MacOS only issue. It should also be fixed with the 2.7 version (you can send a message to Andy Maloney to ask him about this -
https://asmaloney.com/contact/. He may even be able to provide you with a beta version for you to test).
Re: Texture of collapsed towers
Posted: Mon Aug 15, 2016 3:22 pm
by Janhoteko
I got a gaps on resulting point clouds. Tryed to make unroll many times. Tryed to place 120 vertex on polyline to get smoother polyline. Tryed different Thickness on Distance to polyline dialog. Always I getting this gaps.

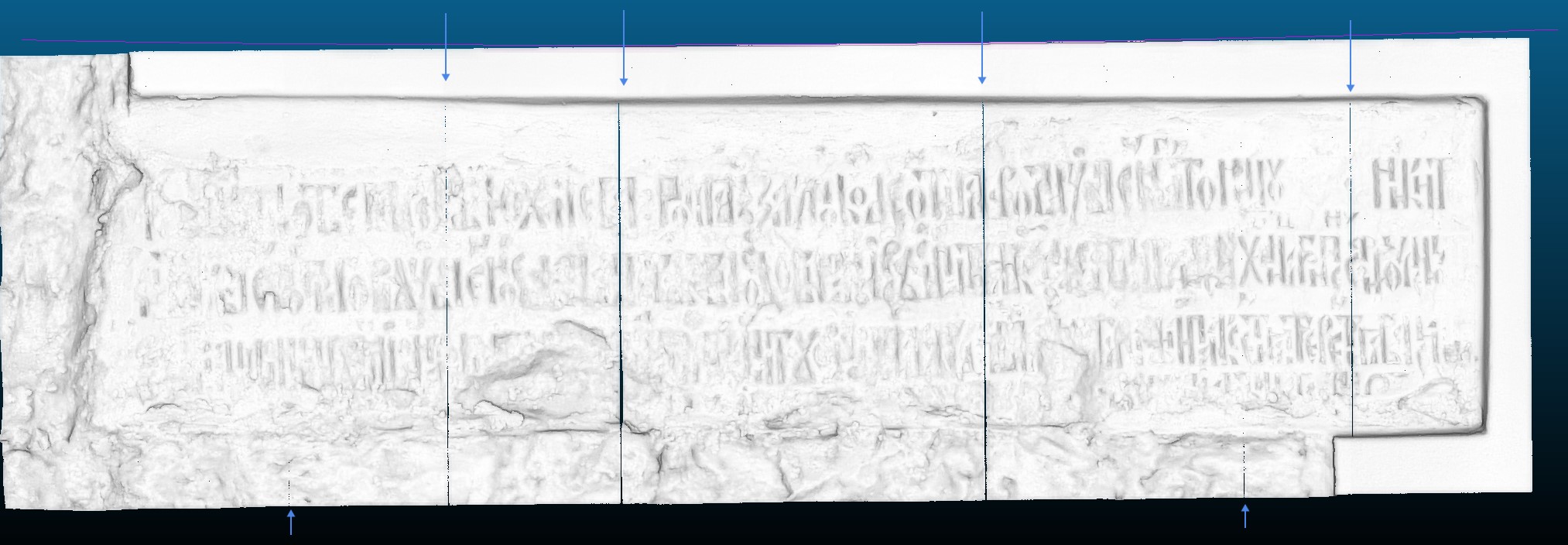

- 02.jpg (247.16 KiB) Viewed 7355 times
Is there a way to make unfold point cloud without a gaps on pertex position?

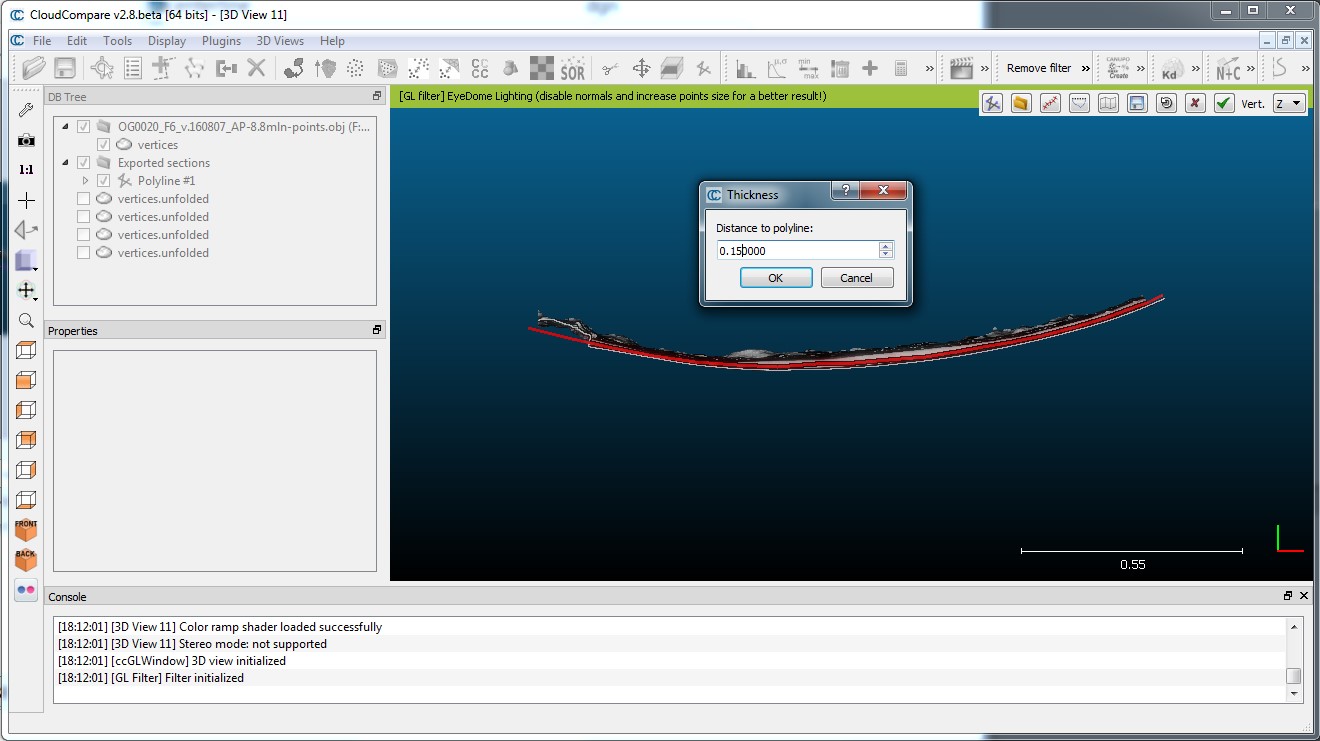

- 01b.jpg (153.44 KiB) Viewed 7355 times

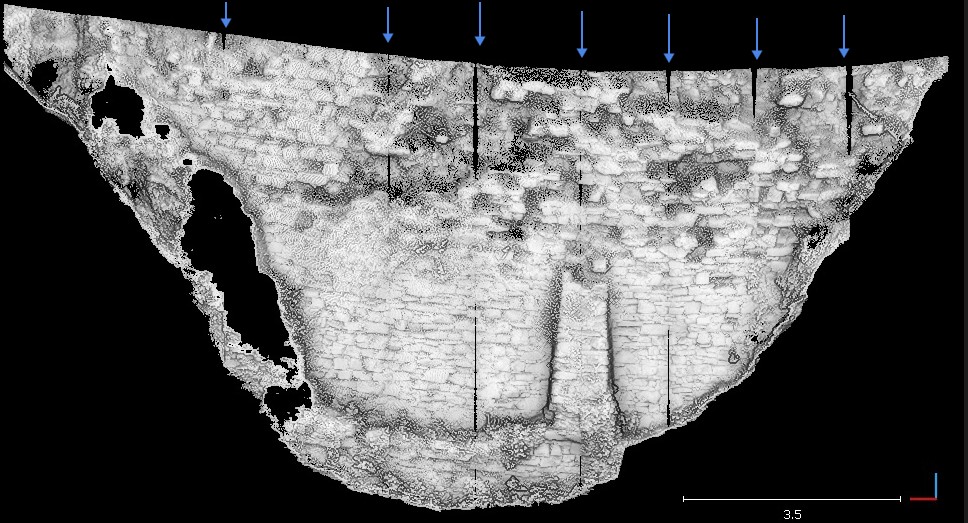

And daniel has same problem too on his result
- 001.jpg (171.56 KiB) Viewed 7355 times
Re: Texture of collapsed towers
Posted: Thu Aug 18, 2016 6:45 am
by daniel
I'll have to investigate a little bit more about this to give you a proper answer but I remember it happens when the wall is not perfectly vertical. At least on the tower example this was the explanation.
Don't hesitate to send me your data and I'll look into it (cloudcompare [at] danielgm.net).
Re: Texture of collapsed towers
Posted: Thu Aug 18, 2016 9:06 am
by Janhoteko
daniel wrote:I'll have to investigate a little bit more about this to give you a proper answer but I remember it happens when the wall is not perfectly vertical. At least on the tower example this was the explanation.
Don't hesitate to send me your data and I'll look into it (cloudcompare [at] danielgm.net).
I sent my point cloud to your mail.
Yes, my object is not so vertical...
