3D reconstruction

Feel free to ask any question here
Post Reply
Andresilva0409
Posts: 3
Joined: Sun Apr 14, 2024 10:30 am

3D reconstruction

Post by Andresilva0409 »

Hey guys,

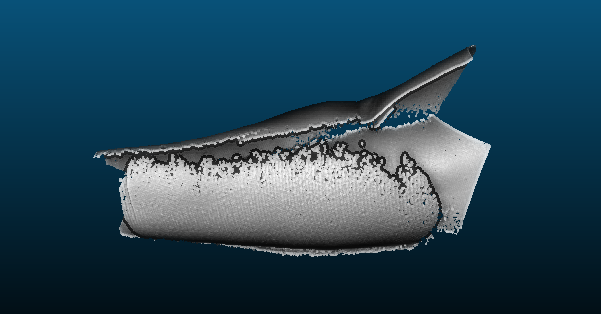

Guys, I have this point cloud (see image 1) with these holes and I want to create a mesh of it.

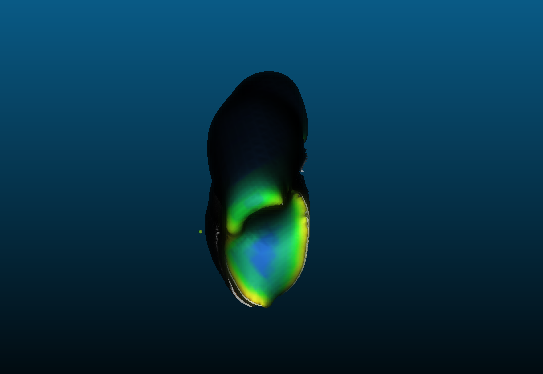

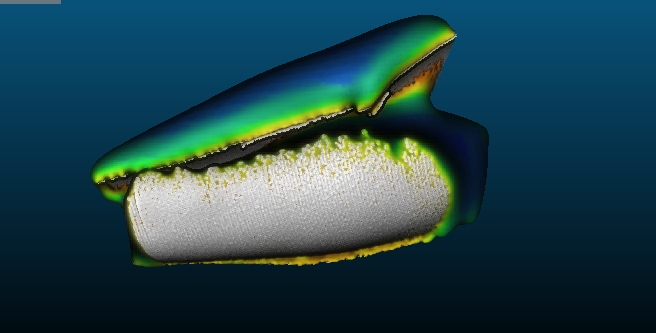

So when I create a mesh, cloudcompare fills these holes automatically(see image 2) and I don't want that, and I wanted to know if anyone here knows how to solve this problem.

Thank you.
Attachments
daniel
Site Admin
Posts: 7713
Joined: Wed Oct 13, 2010 7:34 am
Location: Grenoble, France
Contact:

Re: 3D reconstruction

Post by daniel »

I guess you should activate the 'Density' output?

See https://www.cloudcompare.org/doc/wiki/i ... n_(plugin), last section.
Daniel, CloudCompare admin
DA523
Posts: 166
Joined: Mon May 25, 2020 4:02 pm

Re: 3D reconstruction

Post by DA523 »

If you can not manage by using "Density' output", You can use segment tools to open a hole in the mesh.
Also, You can edit in Blender 3D software
Gregnew
Posts: 1
Joined: Wed Jun 26, 2024 1:02 pm

Re: 3D reconstruction

Post by Gregnew »

Andresilva0409 wrote: Mon Jun 24, 2024 1:14 pm Hey guys,
Guys, I have this point cloud (see image 1) with these holes and I want to create a mesh of it.
So when I create a mesh, cloudcompare fills these holes automatically(see image 2) and I don't want that, and I wanted to know if anyone here knows how to solve this problem.

Thank you.

To prevent CloudCompare from filling holes automatically when creating a mesh from a point cloud, you typically need to adjust the parameters or settings in the mesh generation process
DA523
Posts: 166
Joined: Mon May 25, 2020 4:02 pm

Re: 3D reconstruction

Post by DA523 »

In many cases, adjusting the parameters or settings in the mesh generation process does not help

for example, can we generate a mesh with a side hole in the attached pc example
Attachments
hole example.zip
(22.93 KiB) Downloaded 153 times
DA523
Posts: 166
Joined: Mon May 25, 2020 4:02 pm

Re: 3D reconstruction

Post by DA523 »

Gregnew wrote: Wed Jun 26, 2024 1:05 pm To prevent CloudCompare from filling holes automatically when creating a mesh from a point cloud, you typically need to adjust the parameters or settings in the mesh generation process

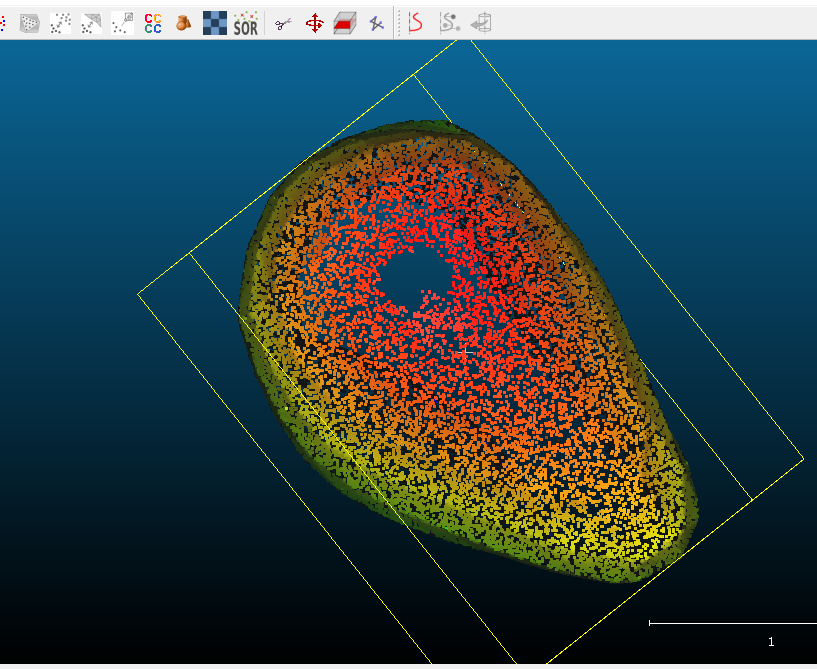

I attached here pointscloud example with a small hole in its top, I can not adjust the parameters to generate a real shape mesh with a small hole in the top.
Any idea just to investigate the PoissonRecon limit
2 hole.zip
(497.55 KiB) Downloaded 160 times
.
Screenshot (323).png
Screenshot (323).png (152.46 KiB) Viewed 1651 times
daniel
Site Admin
Posts: 7713
Joined: Wed Oct 13, 2010 7:34 am
Location: Grenoble, France
Contact:

Re: 3D reconstruction

Post by daniel »

Yes, PoissonRecon density is based on the proximity between the original points and the reconstructed nodes...

That's a bit clunky, but you could maybe sample points on the total reconstructed mesh. Then segment the hole part (point cloud subest) and add it to your original cloud. And re-mesh again!
Daniel, CloudCompare admin
